Emax Tinyhawk 75mm F4 Magnum Mini 5.8G Indoor FPV Racing Drone With Camera RC Drone 2~3S RTF Version with 2 pair props for gift

Emax Tinyhawk 75mm F4 Magnum Mini 5.8G Indoor FPV Racing Drone With Camera RC Drone 2~3S RTF Version with 2 pair props for gift

Regular price $314.37 USD
Regular price $0.00 USD Sale price $314.37 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Video Capture Resolution
Color




Product Description

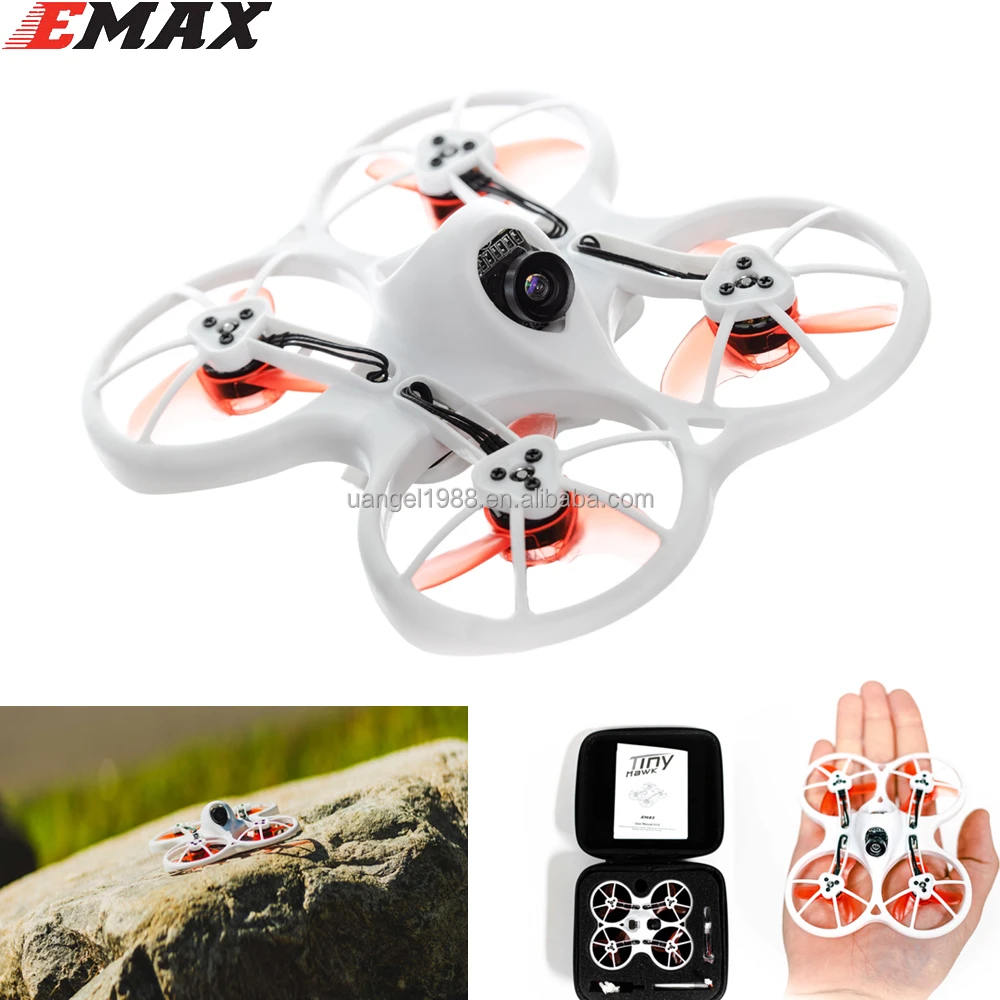

  • 75mm Indoor racing drone

  • 08025 brushless motor with durable ball bearing for increase flight and low maintenance

  • Durable polypropylene plastic frame with propeller guards

  • Motor beeper function. Find your tinyhawk after a crash

  • Speeds up to 56kph

  • Up to 4 minutes flight time on single battery

  • Fast F4 Processor for smooth stable flight characteristics

  • MPU6000 gyro for vibration free operations

  • Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces

  • 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles

  • Smart Audio function to change VTX channel via your transmitter

  • OSD settings control to customize flight feel

  • Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel

  • Plug in type motors for easy maintenance

  • 1s High Voltage (HV) 450mah lipo included

  • 40 Channel goggles for FPV (First Person View) be like a bird, or pilot.

  • 6 Channel gamepad size controller. Feel comfortable, like it playing a video game

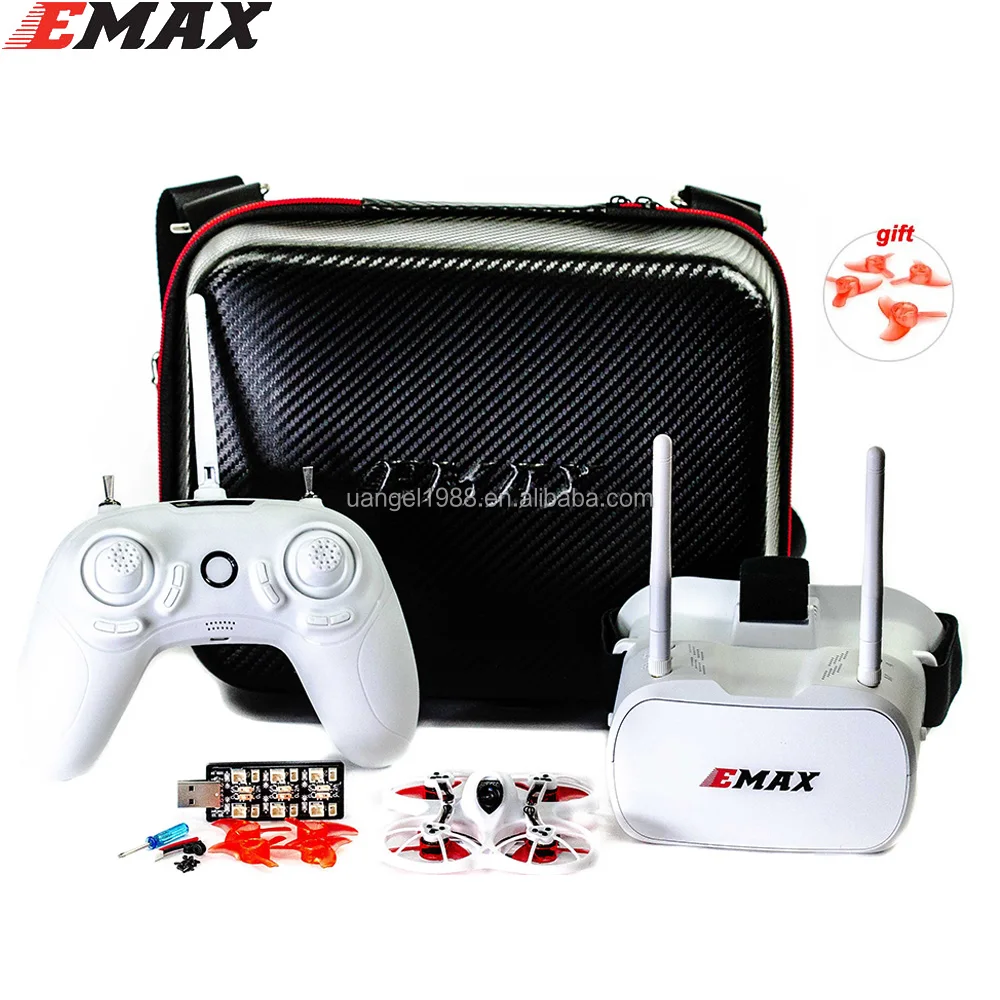

  • Everything included in one package, no need for extra to get in the air out of the box.

  • Frsky compatible D8 receiver built in to FC

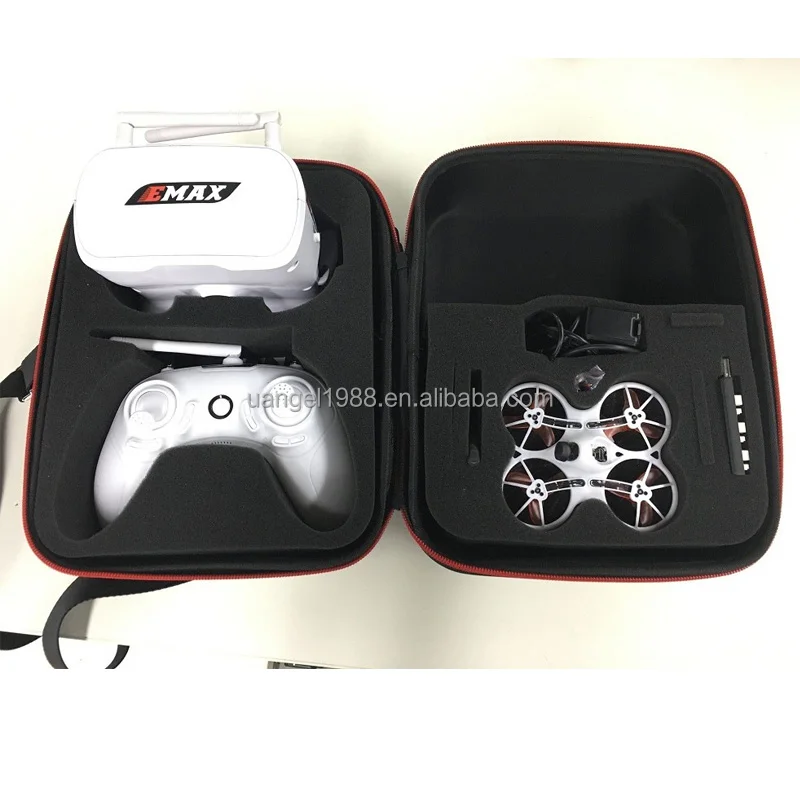

  • Custom carbon fiber themed carrying case




Tinyhawk Specifications:



  • Size: 75mm motor to motor L 110mm x W 95mm x H 39mm

  • Dry Weight: 29g

  • All Up Weight: 42g with 450mah 1s Battery

  • Frame Material: Polypropylene

  • Propeller Properties:

  • Diameter: 40mm

  • Blades: 3

  • Pitch: 23mm

  • Weight: 0.5 g

  • Motor Properties;

  • Stator: 8mm x 2.5mm (08025)

  • Kv: 15000kv

  • Weight: 2.5g

  • Bearing Size: Φ1.5*Φ4*2mm

  • Shaft Diameter:  Φ1.5mm

  • Propeller Mount: Press Fit Over Bell

  • Main PCB:

  • Flight Controller: F4(MATEKF411 firmware)

  • ESCs: 4in1 3A

  • Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)

  • Battery Connector: JST-PH2

  • Camera and VTX:

  • VTX Power: 25mw

  • Channels: 37CH

  • Camera Properties: 600TVL CMOS

  • Smart Audio

  • Battery:

  • Voltage: 1s 4.35v HV

  • Capacity: 450 mAh

  • Discharge rating: 80c/160c

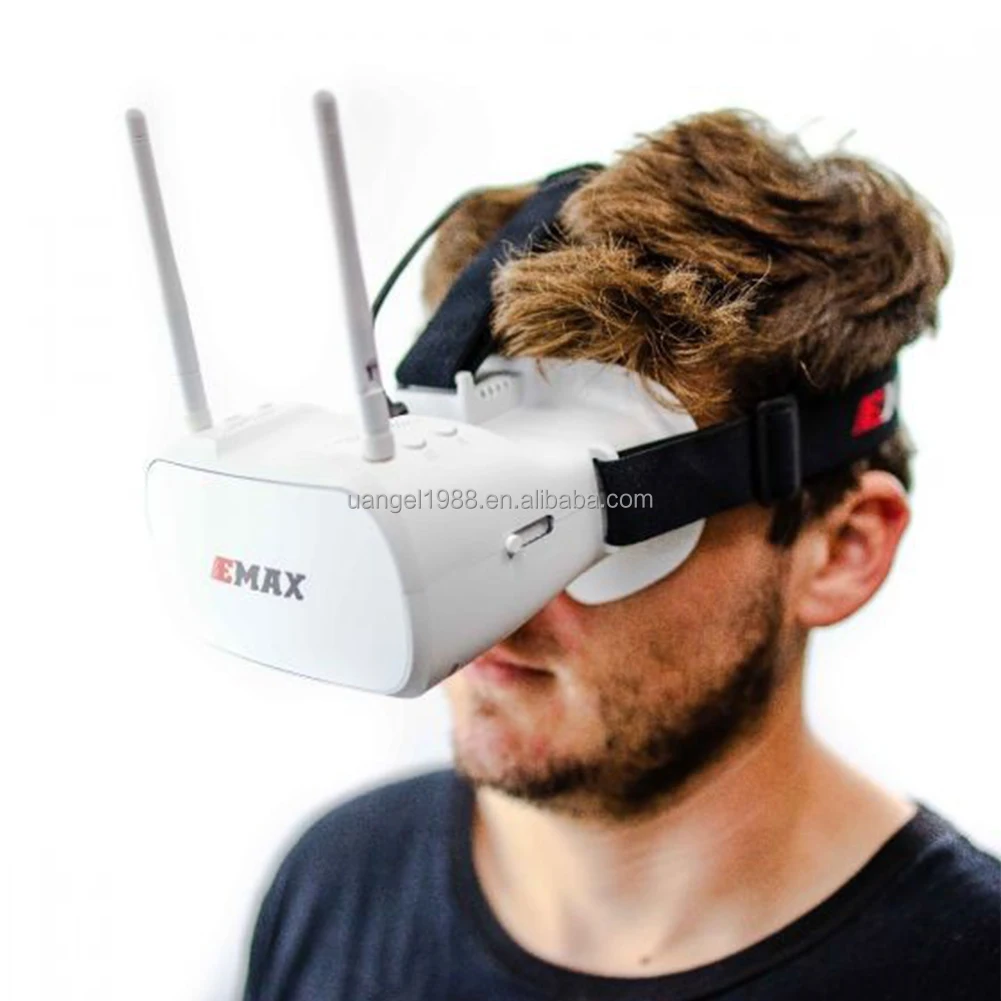

EMAX Transporter Goggles Specifications:



  • Maximum appearance size 140×153×90(mm)

  • Weight (without battery) 398g

  • Resolution 480×272

  • Battery 1 cell 18650 lipo battery



EMAX E6 Transmitter Specifications:



  • Maximum appearance size 181×213×80(mm)

  • Weight (without battery) 211g

  • Number of channels 6 Channels

  • Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz)

  • Output Power 22dbm

  • Modulation GFSK

  • Battery 1 cell 18650 lipo battery
